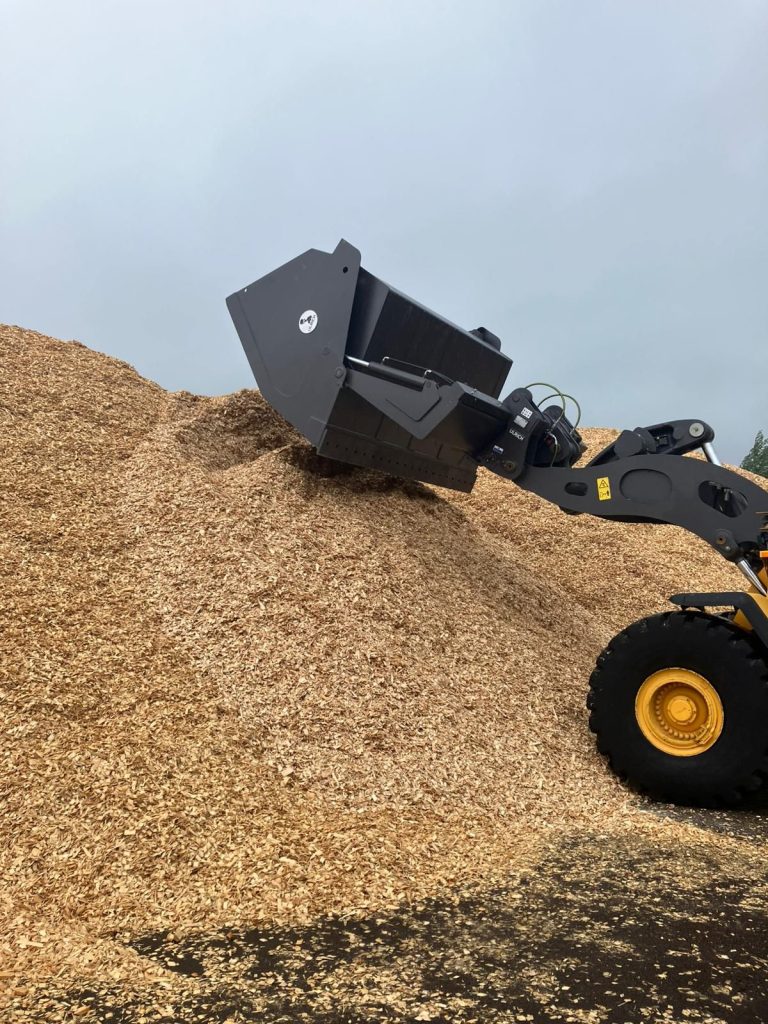

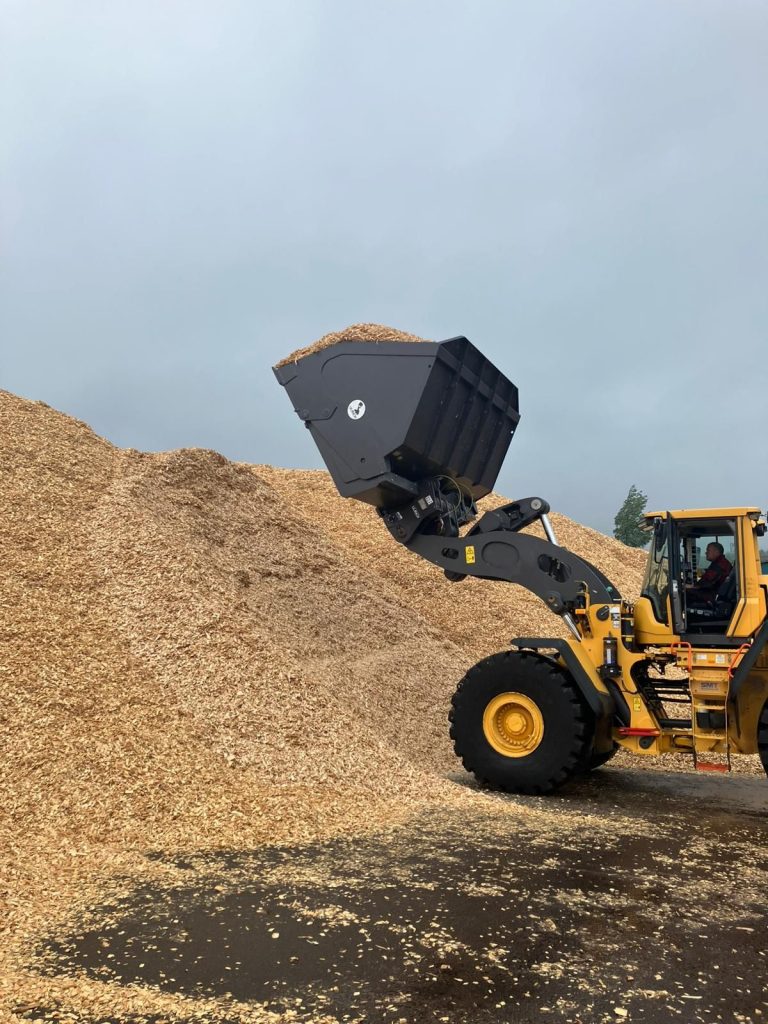

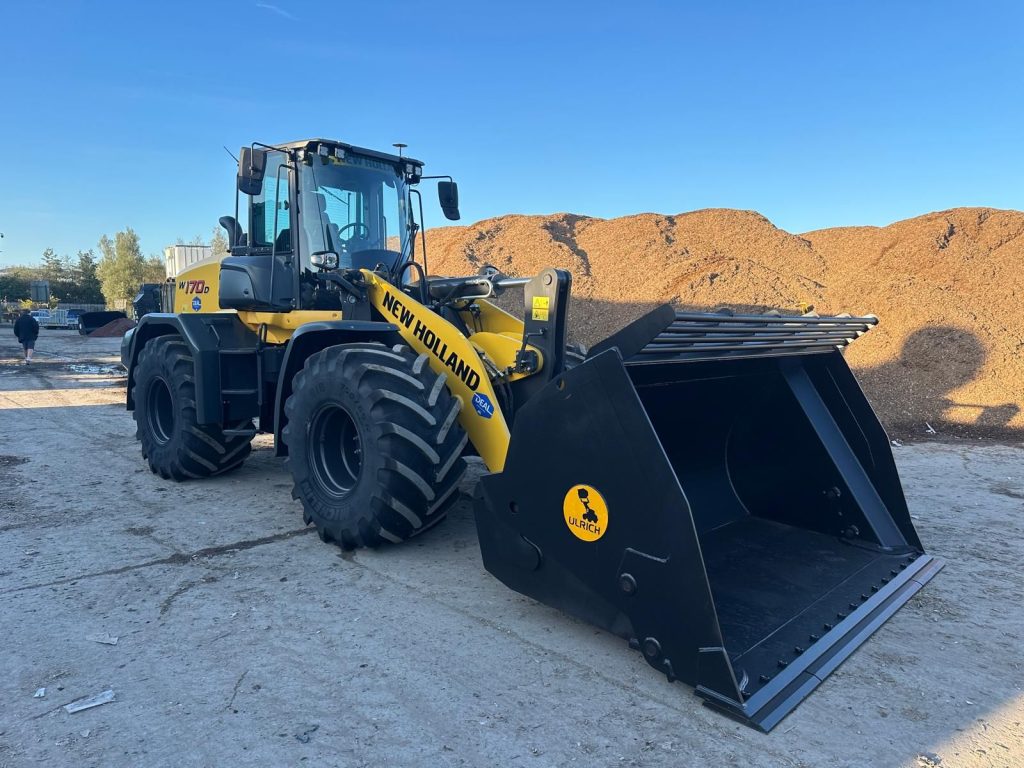

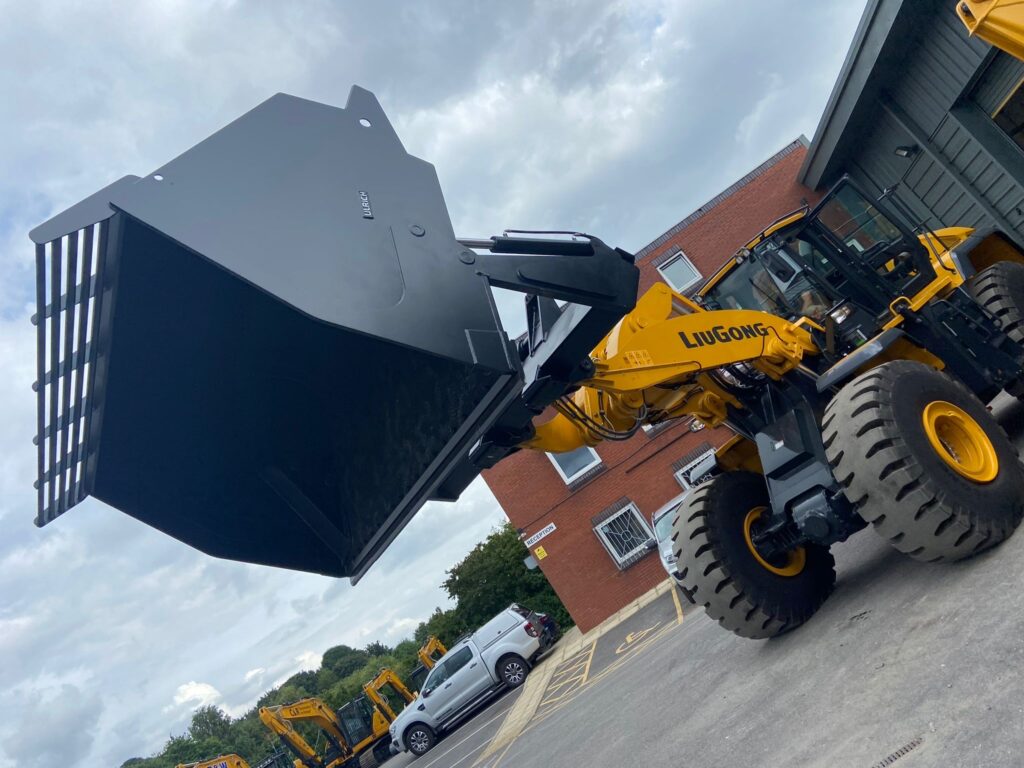

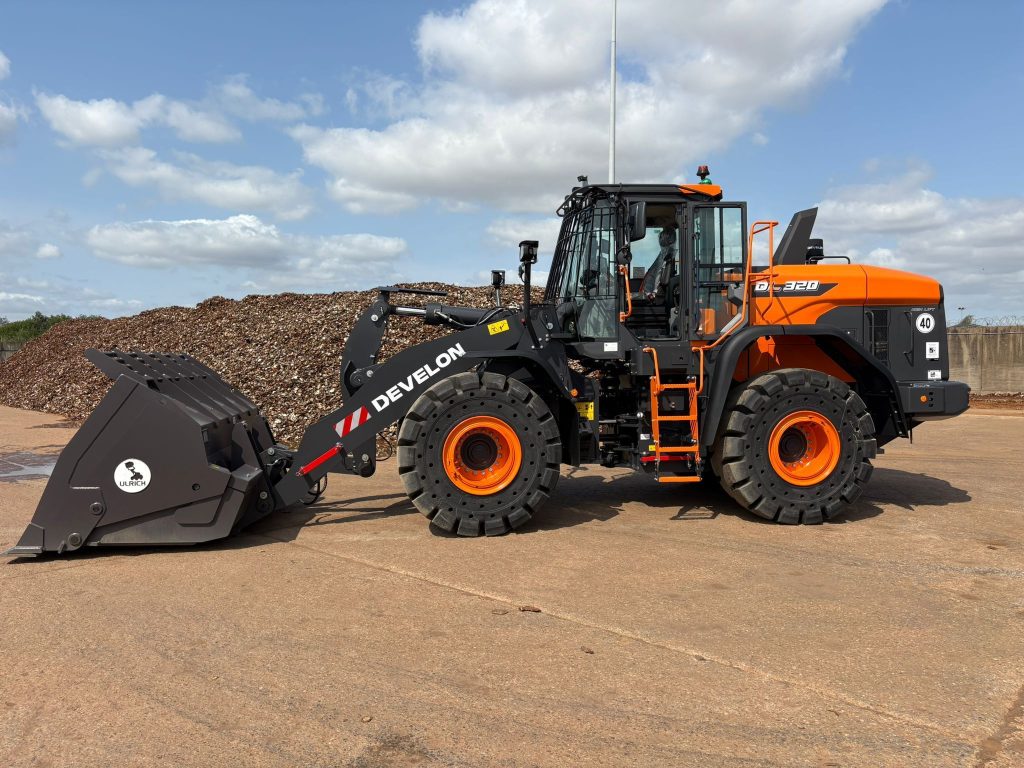

High Tip Buckets

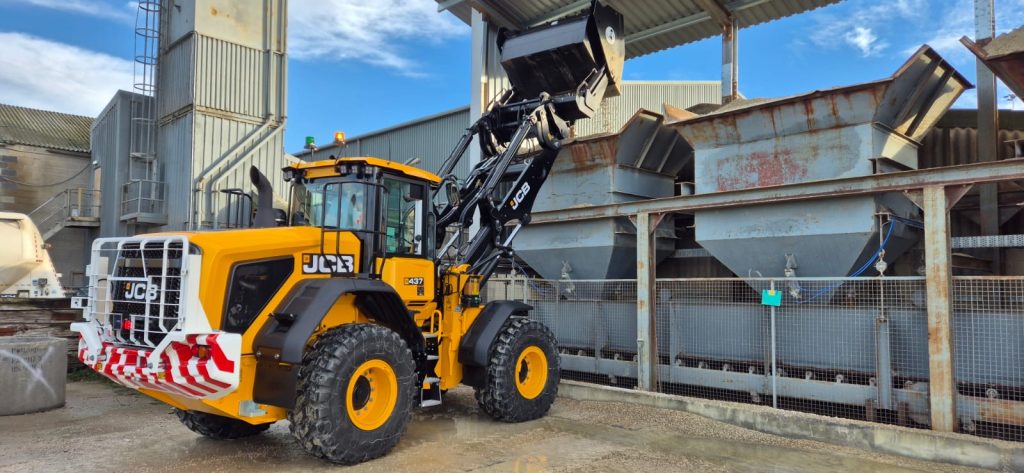

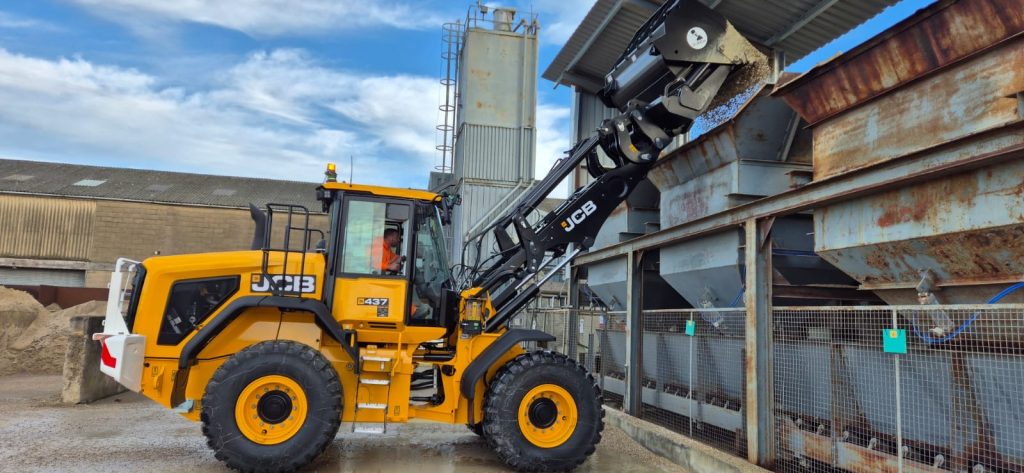

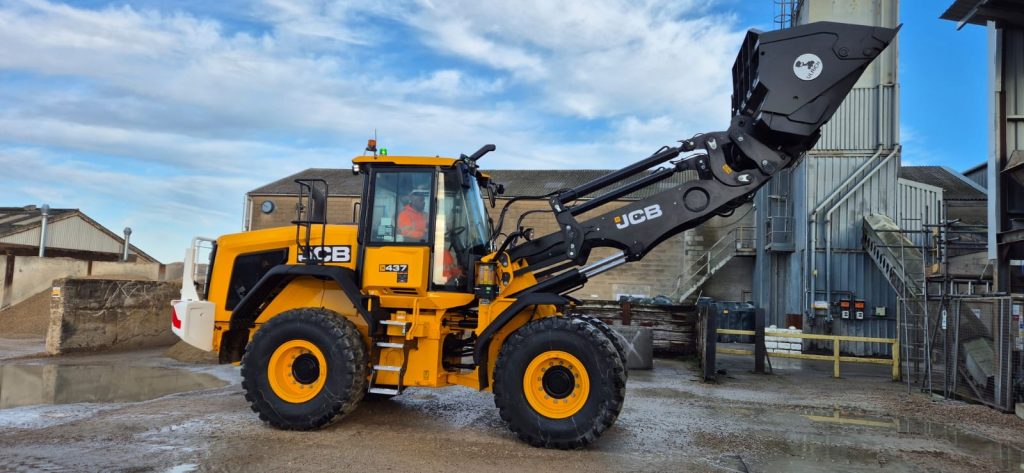

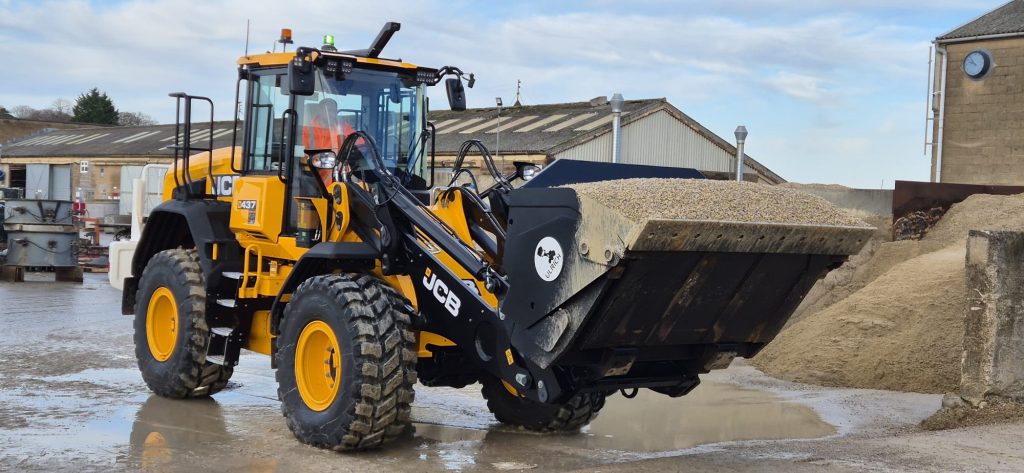

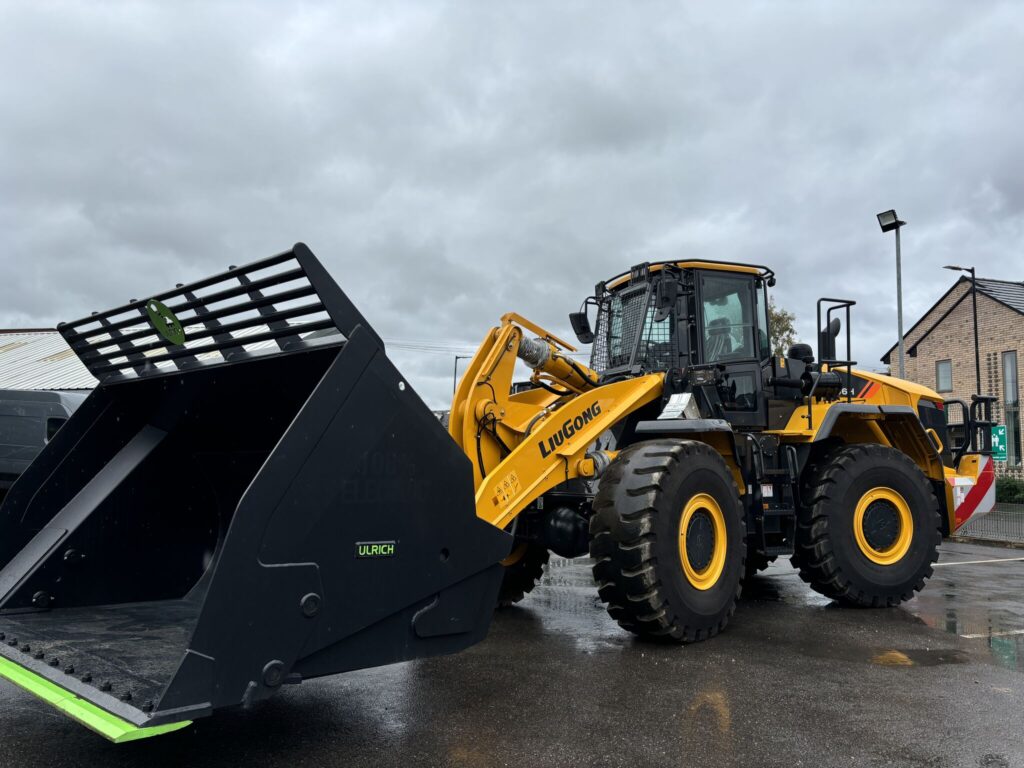

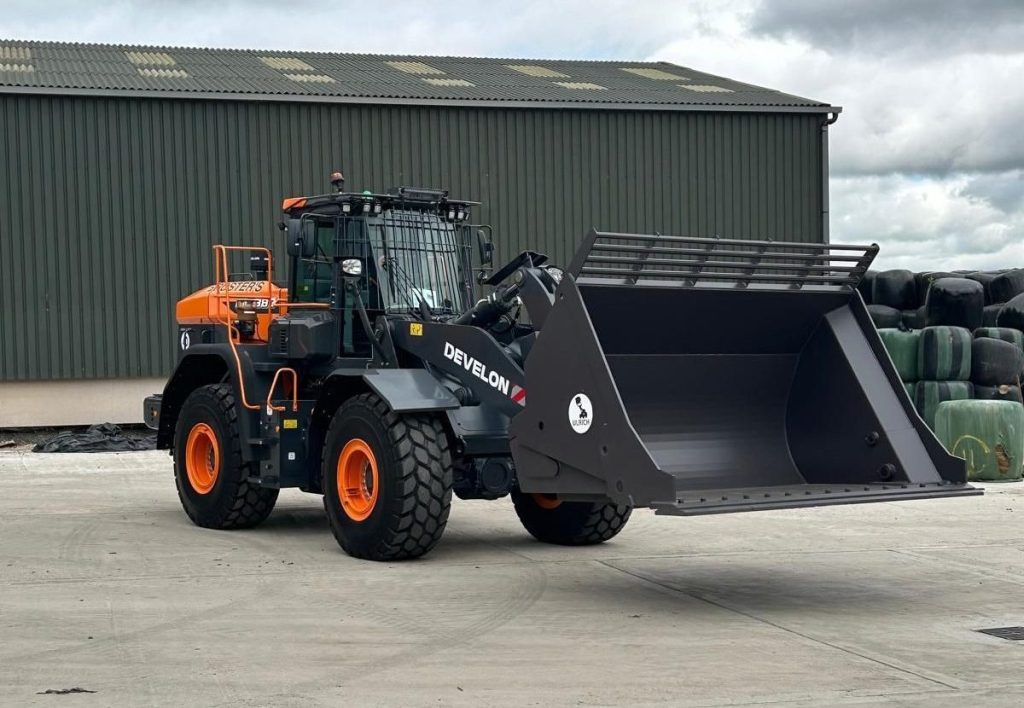

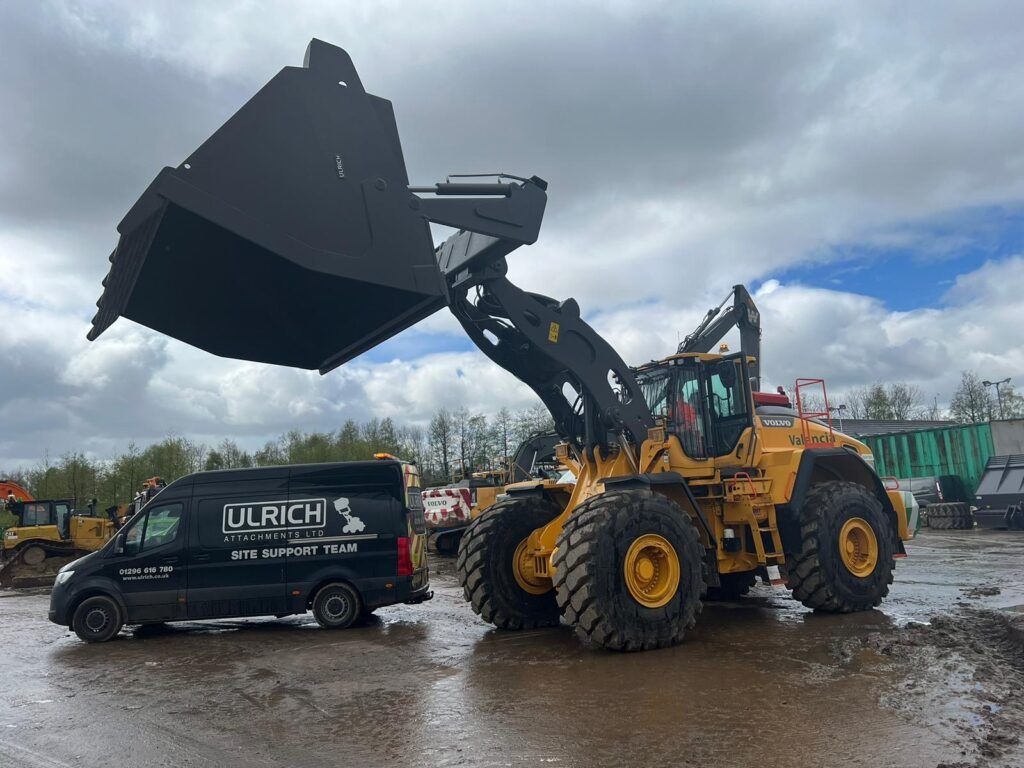

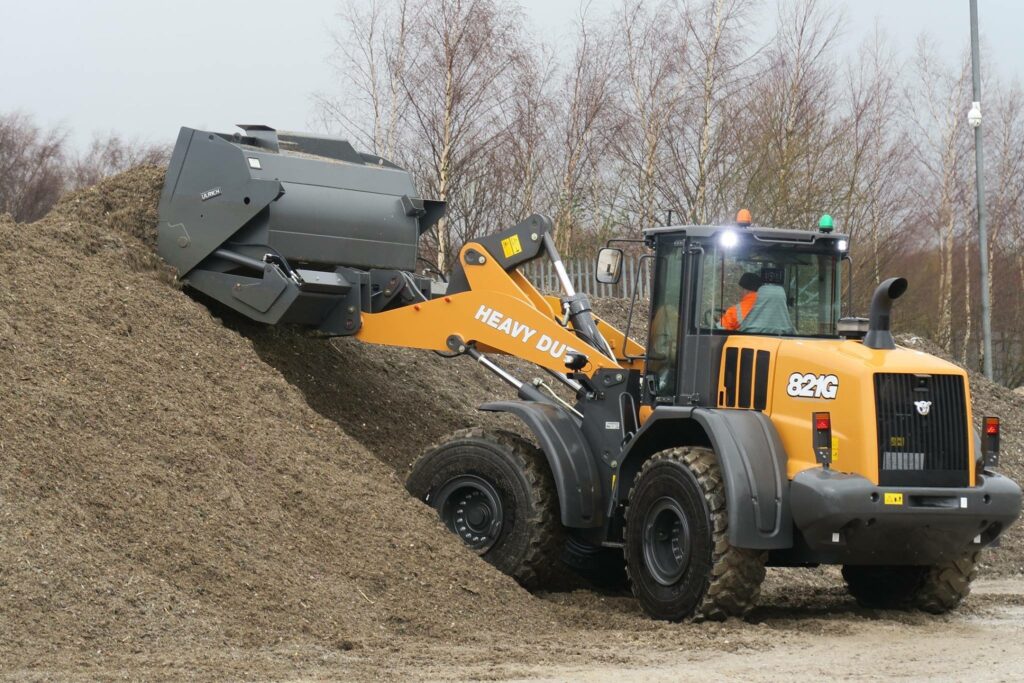

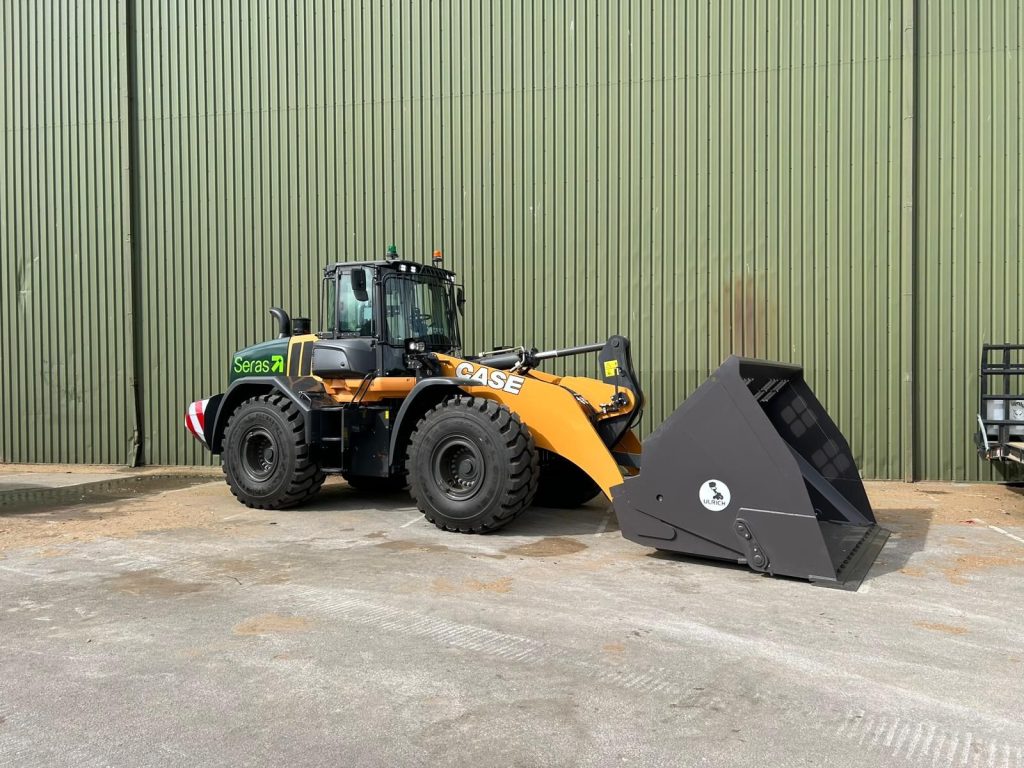

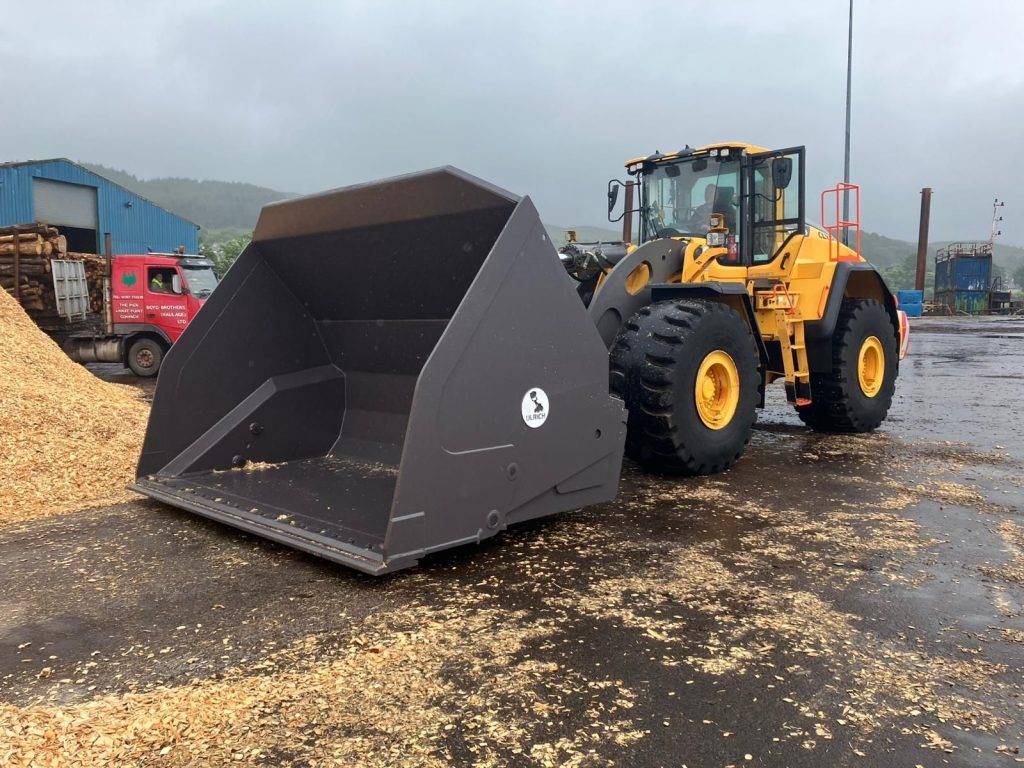

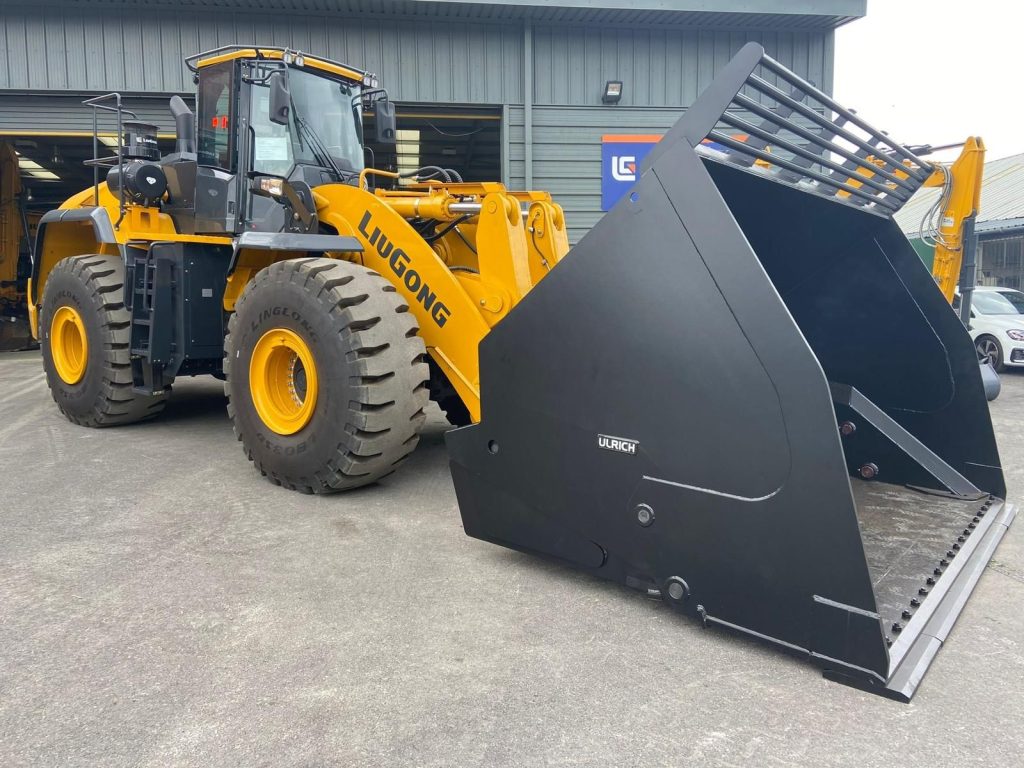

Ulrich Attachments manufactures a wide range of High Tip buckets to suit all OEM Wheeled Loading Shovels. Ulrich’s High Tip bucket offering is our most well-known product range. Our high tip buckets are specifically designed to load high sided trucks & hoppers giving an additional discharge height of up to 1,700mm above that obtained with a general-purpose bucket. Our high tip buckets are Made in Britain and are available with extended warranty. In June 2024, we manufactured our largest high tip bucket to date, which can be viewed here.
Enquire now to receive a quote for an Ulrich High Tip Bucket
About Ulrich High Tip Buckets
The High Tip buckets are carefully designed to offer a capacity that best suits the wheeled loading shovel capabilities and the material it will be handling within the application. The capacity offered to suit the specific material will increase productivity and Ulrich can manufacture the bucket to suit all loading bays and surroundings by adapting the standard width and shape of the standard bucket to suit.
Also known within the industry as Toe Tip, Tip Toe, Hy-Tip & High Discharge buckets, Ulrich can produce a specification to suit any application including Waste, Glass, Gypsum, Grain, Silage, and many other materials. Our standard specification is manufactured from high tensile steel with 450/560 Brinell Hardness steel wearing parts. Ulrich also produces full heavy-duty versions of the High Tip bucket range for specific applications and materials. The heavy-duty buckets are manufactured from 1250N/mm² tensile, 1000N/mm² yield steel.
Designed to last within the harshest environments the Ulrich high tip bucket offering starts from a 0.7m³ up to a 14m³ capacity High Tip bucket. The Ulrich High Tip bucket can be produced to suit both fitting options including direct or quick coupler mounted. The high tip bucket can be supplied with up to 5 years warranty.
| Capacity (m³) | Gross Weight (kg) | Recommended Loader Size (tonnes) | HY-TIP | HYLM | HYTCF |
|---|---|---|---|---|---|
| 1.0m³ | 1,100kg | 10-12 | |||
| 1.5m³ | 1,400kg | 10-12 | |||
| 2.0m³ | 1,700kg | 10-12 | |||
| 2.5m³ | 1,800kg | 12-14 | |||
| 3.0m³ | 2,200kg | 12-14 | |||
| 3.5m³ | 2,500kg | 14-18 | |||
| 4.0m³ | 2,600kg | 14-18 | |||
| 4.5m³ | 2,800kg | 18-20 | |||
| 5.0m³ | 2,900kg | 18-20 | |||
| 5.5m³ | 3,000kg | 20-24 | |||
| 6.0m³ | 3,150kg | 20-24 | |||
| 6.5m³ | 3,400kg | 24+ | |||
| 7.0m³ | 3,800kg | 24+ | |||
| 8.0m³ | 3,900kg | 24+ | |||
| 9.0m³ | 4,200kg | 24+ | |||
| 10.0m³ | 4,300kg | 24+ | |||
| 11.0m³ | 4,500kg | 24+ | |||
| 12.0m³ | 5,600kg | 24+ | |||
| 13.0m³ | 6,000kg | 24+ | |||
| 14.0m³ | 6,500kg | 24+ |
High Tip Bucket Manual
High Tip Bucket
The Ulrich ‘High Tip’ Bucket is designed to give a high discharge.
