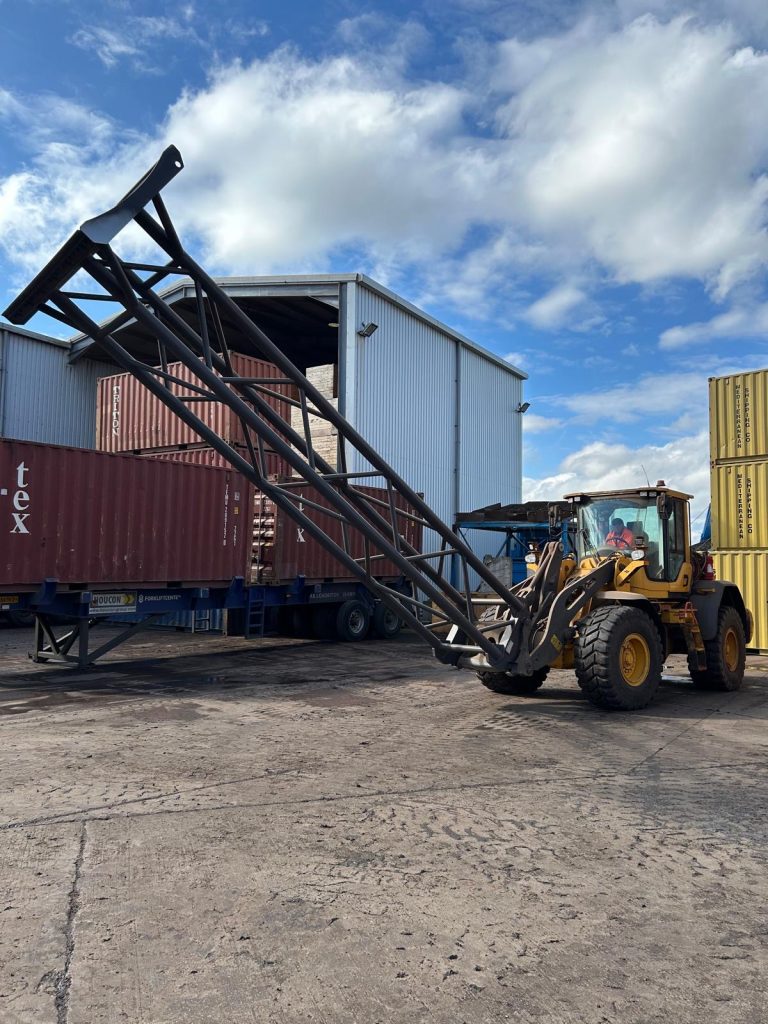

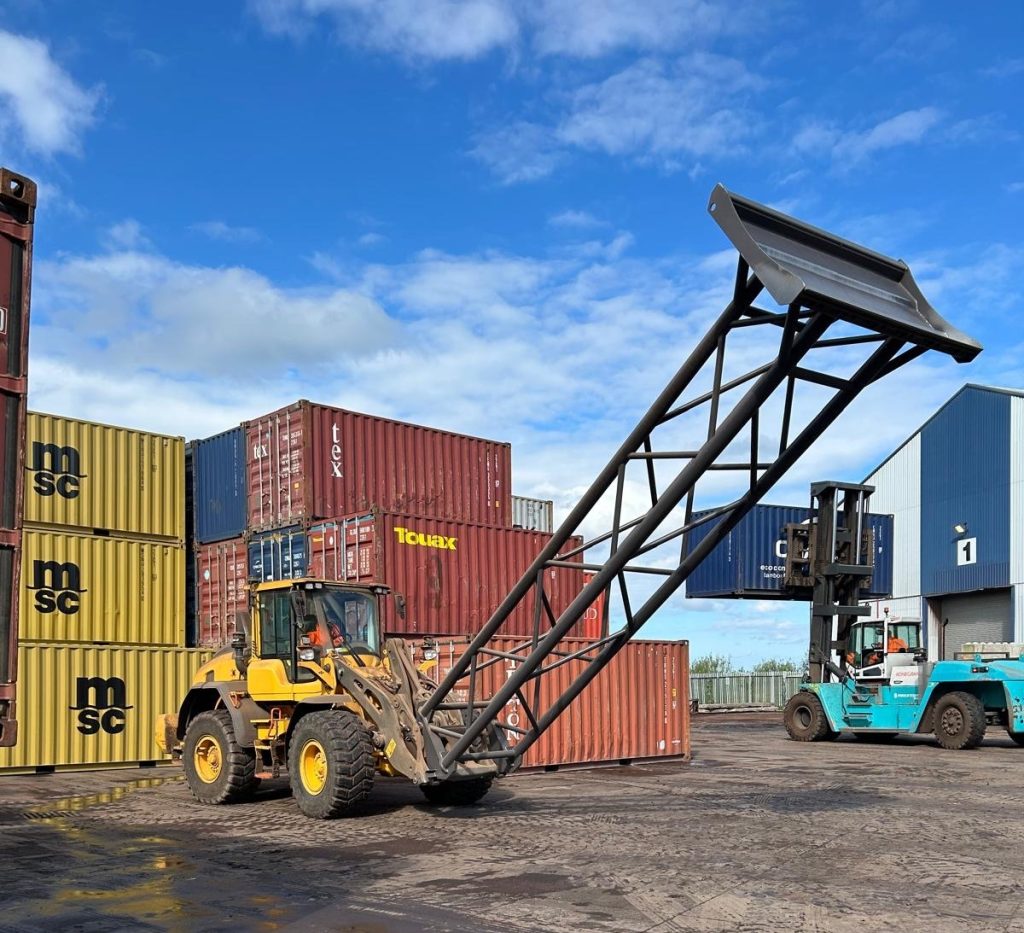

Pusher Blade
Ulrich Attachments manufactures a range of High-Quality Pusher Blade Attachments to suit all OEM Wheeled Loading Shovels. Ulrich’s Pusher Blade range offers up to 12.0 meters long, also available with an extension bracket.
Enquire now to receive a quote
Description
The Pusher Blades are carefully designed to a tested tubular crane style to offer the best structural solution attachment which suits the demands within the application. The overall length & blade width will be offered to suit the specific material and storage space and will depend on the capabilities of the Wheeled Loading shovel.

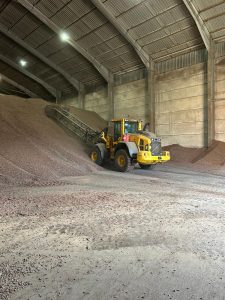

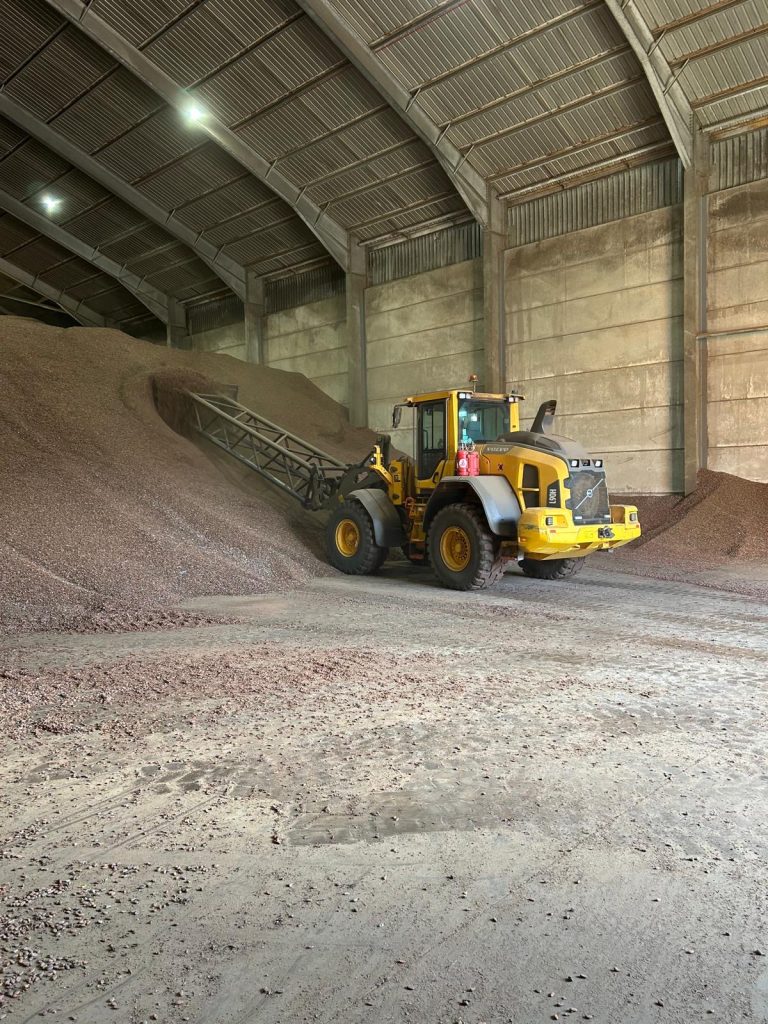

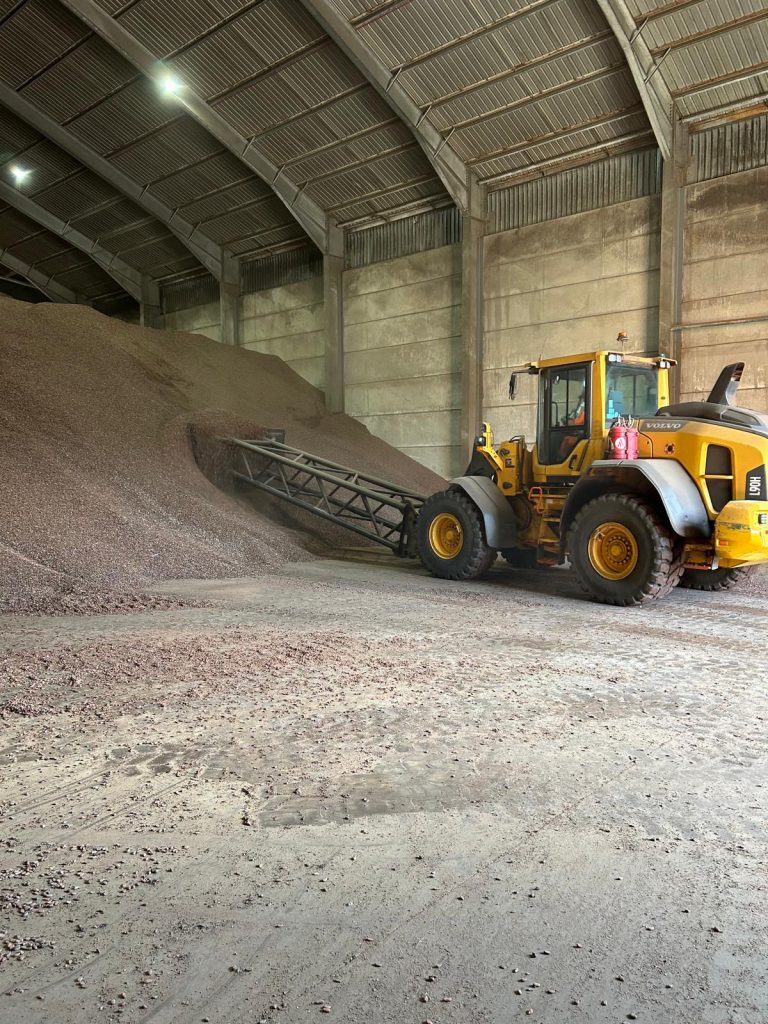

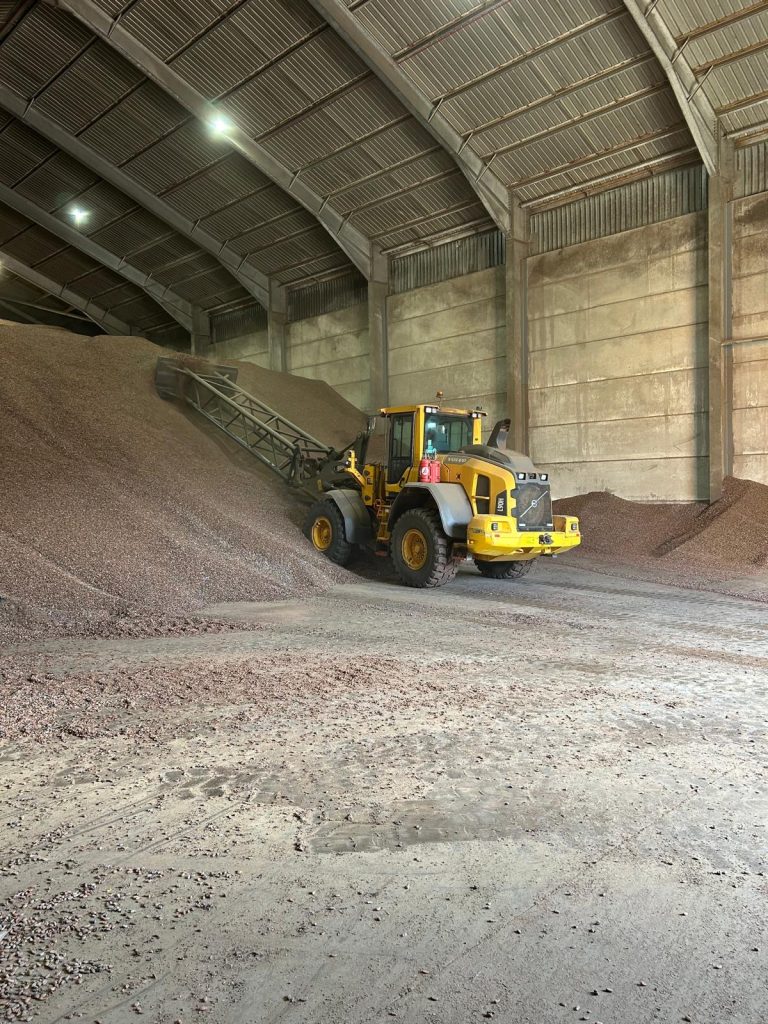

Predominantly used within the grain industry, Ulrich has produced pusher blades for such materials as Glass, Gypsum, Waste, Scrap metal and similar materials. Our standard specification pusher blade is manufactured from high tensile steel with 450/560 Brinell Hardness steel wearing parts. Ulrich also produces full heavy-duty versions of the range for specific applications and materials. The heavy-duty pusher blades are manufactured from 1250N/mm² tensile, 1000N/mm² yield steel.
| Capacity (m³) | Gross Weight (kg) | Recommended Loader Size (tonnes) |
|---|---|---|
| 4.0m³ | 1,500kg | 8+ |
| 5.0m³ | 2,900kg | 10+ |
| 6.0m³ | 3,150kg | 12+ |
| 7.0m³ | 3,800kg | 16+ |
| 8.0m³ | 3,900kg | 20+ |
| 9.0m³ | 4,200kg | 24+ |
| 10.0m³ | 4,300kg | 28+ |
| 11.0m³ | 4,500kg | 28+ |
| 12.0m³ | 5,600kg | 28+ |
Pusher Blade
The Ulrich Pusher Blade is designed for dozing light materials in stock pile and yard cleaning operations.
