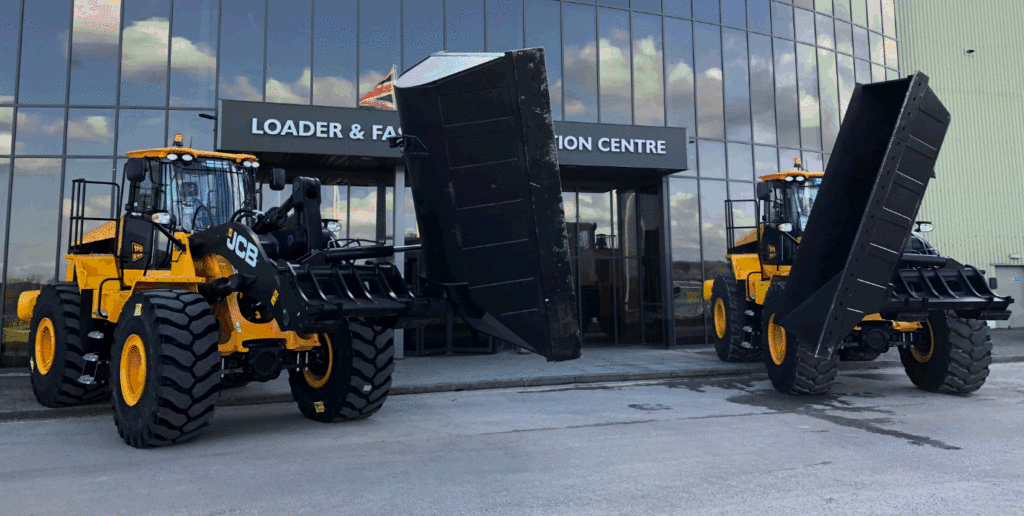

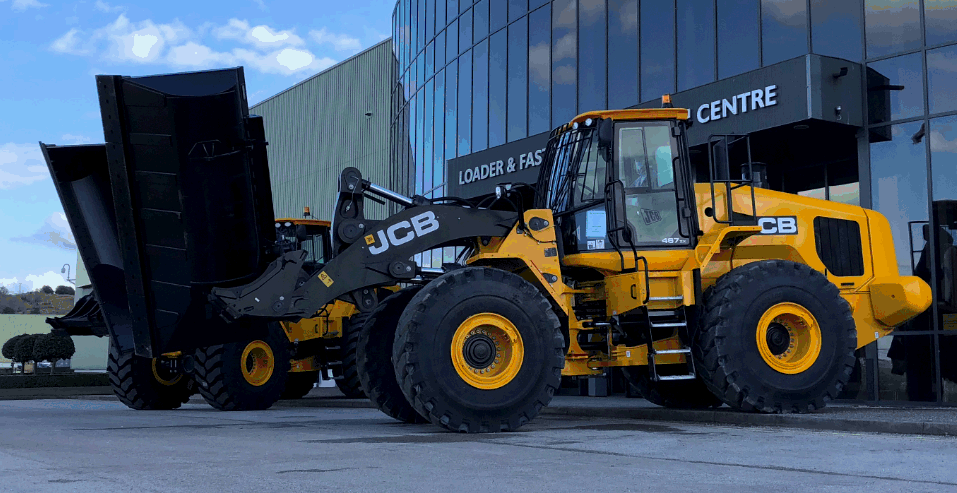

Side Dump Bucket
Ulrich manufactures a wide range of bespoke attachments, and the Ulrich Side Dump bucket is part of that collection, the side dump bucket is designed for general earth moving duties in restricted conditions being able to discharge product either side of the machine based on the tip direction decided when built. Like all of Ulrich’s attachment products, this attachment is designed and manufactured in the United Kingdom.
The side dump bucket is rugged yet simple and manufactured from materials carefully chosen for strength and durability, allowing weight to be kept to the minimum. Ulrich side dump buckets help to reduce operating cycle time and wear on tyres and tracks.
Enquire now to receive a quote for an Ulrich Side Dump bucket
About Ulrich Side Dump Buckets
The Side Dump bucket operates as a normal general-purpose bucket when locked into place by the ‘Tiplock’ operation which latches the bucket to the cradle of the attachment. Offering both Right & Left dump options the bucket uses the third spool of the loader control valve and pipework for operation.
The Side Dump buckets are carefully designed to offer a capacity that best suits the wheeled loading shovel capabilities and the material it will be handling within the application. The capacity starts from 0.7m³ and can be produced to suit both fitting options including direct or quick coupler mounted. The Side Dump bucket can be supplied with up to 5 years warranty.
Our standard specification is manufactured from high tensile steel with 450/560 Brinell Hardness steel wearing parts. Ulrich also produces full heavy-duty versions of the Side Dump bucket range for specific applications and materials. The heavy-duty buckets are manufactured from 1250N/mm² tensile, 1000N/mm² yield steel.
Side Dump Bucket Manual
Side Dump Bucket
The Ulrich Side Dump Bucket comprises of a bucket and cradle manufactured from high grade alloy steels. The bucket pivots on a cradle and the side dump function is activated by a hydraulic cylinder.
Download PDF
